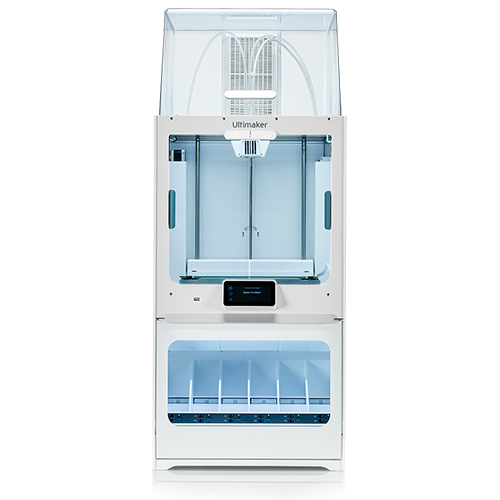

Ultimaker S5 Pro Bundle

The Ultimaker S5 Pro Bundle boosts productivity, flexibility, and confidence to unlock demanding applications with an extended range of materials.

Built to run continuously and maximize uptime, Ultimaker S5 combines dual extrusion, advanced connectivity, and an open filament system – ready to make 3D printing accessible for even more applications, from rapid prototyping to creating on-demand tooling and end-use parts.

When you buy an Ultimaker S5 Pro Bundle you will receive:

  • Ultimaker S5
    • Glass Plate
    • Spool Holder with Material Guide
    • Power Cable
    • Ethernet Cable
    • 16GB USB Stick
    • Print Core AA 0.4 (x2: One Print Core Already Installed)
    • Print Core BB 0.4 (x1)
    • XY Calibration Sheet - Glass Plate
    • XY Calibration Sheet - Aluminum Plate
    • Calibration Card
    • Nozzle Cover (x3)
    • Tough PLA 750g
    • PVA 750g
    • Glue Stick
    • Oil
    • Grease
    • Hex Screwdriver 2mm
  • Ultimaker S5 Air Manager
  • Ultimaker S5 Material Station

Price:Price: $9,100.00

Request a Quote

Industrial production power on your desktop

Our unique production solution gives busy engineers and designers the freedom to focus all day on doing their best work.

Transform your office 3D printing workflow with automated material handling, air filtration, and filament humidity control. The Ultimaker S5 Pro Bundle boosts productivity, flexibility, and confidence to unlock more demanding applications with an extended range of materials.

Key benefits

•Easily print more materials with fewer air quality concerns

•Tested to work unattended 24/7 – for maximum productivity

•Focus on your work, by spending less time at the printer

Ultimaker S5 Air Manager

3D print more materials with greater peace of mind

Ultimaker S5 Air Manager

Features

EPA filter: Removes up to 95% of UFPs

Controlled extraction: Inside-out airflow optimized for filtering and print quality

Enhanced safety: Physical barrier prevents reaching inside the printer

Optimized for your application: Detects material being used and adjusts airflow

Easy setup: Printer detects when Air Manager is connected

Smart monitoring: Printer tracks filter usage and prompts replacement

Ultimaker S5 Material Manager

Unleash true 24/7 3D printing

Ultimaker S5 Material Station


Features

Fast and easy loading: Front-facing bay for up to six materials reduces loading time to a few seconds

Uninterrupted printing: Sensors detect when one material spool ends and automatically loads the next

Humidity control: Intelligent atmospheric management keeps relative humidity below 40%

Easy setup and monitoring: NFC material auto-recognition and seamless integration with Ultimaker software

Composite materials compatible: Print parts with high strength and unique properties

Limitless configurations: Keep your most-used materials ready to print when you need – Ultimaker and third-party filaments


Easy setup and control at your fingertips

Touchscreen control, swappable print cores, and notifications to your desktop or the new Ultimaker app - all help to make operating your Ultimaker S5 incredibly easy. This is powerful 3D printing, but without the hassle.


Design freedom for even more applications

Print complex geometries and technical parts in a variety of engineering materials with the most reliable dual extrusion on the market. Choose from a wealth of different materials, including Tough PLA, Polypropylene, Nylon, or take advantage of the Ultimaker’s open filament system for a custom material solution.


Scale up with confidence

Meet demand with maximum efficiency. Our thoroughly tested material profiles, controlled printing environment, enhanced active bed leveling, and filament flow sensor ensure reliability from first layer to finished part. Get great results every time, no matter how large your print job.


Design freedom with reliable dual-extrusion

Achieve complex geometries and intricate designs with the Ultimaker S5’s reliable dualextrusion technology and water-soluble support.Print in a range of engineering and support materials for complete design freedom, with minimal post-processing.


Here to help you succeed

The Ultimaker S5 comes with a one year warranty and lifetime support from trained and certified global network of partners. And if you have a question, our online resources and community are there for you 24/7.

Ultimaker S5 Specifications
Office-friendly, 3D printer, industrial-class results
Meet the easy-to-use desktop 3D printer with a large build volume that delivers accurate, industrial-grade parts, time and again.
Built to run continuously and maximize uptime, Ultimaker S5 combines dual extrusion, advanced connectivity, and an open filament system — ready to make 3D printing accessible for even more applications, from rapid prototyping to creating on-demand tooling and end-use parts.

Reliability at scale

Every day, hundreds of thousands of engineers, designers, architects, and medical professionals around the world rely on Ultimaker 3D printers for their work. Ultimaker S5 takes this dependability and performance to the next level with a range of new and refined features:


Printer and printing propertiesTechnologyFused filament fabrication (FFF)
Print headDual extrusion print head with a unique auto-nozzle lifting system and swappable print cores
Build volume (XYZ)330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
Layer resolution0.25 mm nozzle: 150 - 60 micron
0.4 mm nozzle: 200 - 20 micron
0.6 mm nozzle: 300 - 20 micron
0.8 mm nozzle: 600 - 20 micron
XYZ resolution6.9, 6.9, 2.5 micron
Build speed< 24 mm3/s
Build plateHeated glass build plate (20 - 140 °C)
Nozzle diameter0.4 mm (included)
0.25 mm, 0.6 mm, 0.8 mm (sold separately)
Operating sound< 50 dBA
ConnectivityWi-Fi, LAN, USB port
Compatible materialsOptimized
for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A,
PVA, Breakaway (Also supports third-party materials)
Physical dimensionsDimensions394 x 489 x 637 mm (15.5 x 19.3 x 25.1 in)(inc. Bowden tubes and spool holder)
Net weight14.4 kg (31.7 lbs)
SoftwareSupplied softwareUltimaker
Cura, our free print preparation software Ultimaker Connect, our free
printer management solution Ultimaker Cloud, enables remote printing
File typesUltimaker Cura: STL, OBJ, X3D, 3MF, BMP,
GIF, JPG, PNG
Printable formats: G, GCODE, GCODE.gz, UPF
Ultimaker S5 Air Manager Specifications

Ultimaker S5 Material Station Specifications
PropertiesFilament diameter2.85 mm
Material spool dimensionsWidth: 50 - 70 mm (2 - 2.7 in)
Diameter: 197 - 203 mm (7.8 - 8 in)
Core diameter: > 98 mm (3.8 in)
Material capacity6 spools
Material recognitionAuto-recognition enabled with NFC scanner
Feeder typeDual-geared, abrasion-resistant
Data connectionUMB connection (included)
Power input85 - 264 VAC, max. 125 W
Power outputMax. 10A (for Ultimaker S5)
Compatible 3D printersUltimaker S5
Compatible materials Optimized for Ultimaker PLA, Tough PLA, ABS, Nylon, CPE, CPE+, PC, PP, TPU 95A, PVA, Breakaway (Also supports third-party materials)
Physical dimensionsDimensions491 x 438 x 400 mm (19.3 x 17.2 x 15.7 in)
Net weight17.7 kg (39 lbs)
SoftwareSupplied softwareUltimaker Cura, our free print preparation software Ultimaker Connect, our free printer management solution Ultimaker Cloud, enables remote printing
WarrantyWarranty period12 months
