TROUBLE-FREE PROFESSIONAL 3D PRINTING WITH ULTIMAKER S5 3D PRINTER

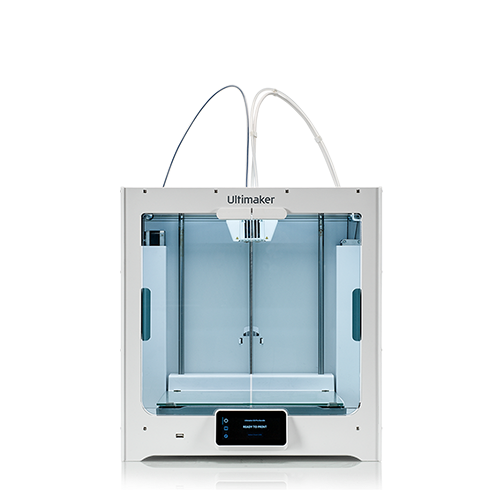

The Ultimaker S5 is the first model in the new ‘S’ series line of professional grade 3D printers from Ultimaker. Building on experience, industry feedback, and the need to create a quality, reliable 3D printer for all levels of creator, Ultimaker has brought to life the S5. From pros to hobbyists, the next evolution in Ultimaker’s 3D printing will meet and exceed the needs of anyone.
The Ultimaker S5 is an awesome dual-extrusion 3D printer with a number of outstanding features. With a build volume of 330 x 240 x 300 mm (13 x 9.5 x 11.8 inches), an installed glass front door, and a redesigned, integrated full LED touchscreen, you can 3D print like never before. In addition, the Ultimaker S5 comes with an improved filament feed system with filament flow sensor so in case of power outage, or if you run out of filament, you can resume your last 3D print right where it started once you get a new spool loaded or the power back on. The adaptive, heated build plate has enhanced bed leveling capabilities, resulting in excellent first layers, and peace of mind throughout the entire print. It also comes with multiple, swappable build plates for different 3D printing materials; glass and anodized aluminum are included, with more build plate options available Fall 2018. The extruder components have also been hardened making them more suitable for abrasive filaments.
Easy setup and control at your fingertips
Touchscreen control, swappable print cores, and notifications to your desktop or the new Ultimaker app - all help to make operating your Ultimaker S5 incredibly easy. This is powerful 3D printing, but without the hassle.
Design freedom for even more applications
Print complex geometries and technical parts in a variety of engineering materials with the most reliable dual extrusion on the market. Choose from a wealth of different materials, including Tough PLA, Polypropylene, Nylon, or take advantage of the Ultimaker’s open filament system for a custom material solution.
Scale up with confidence
Meet demand with maximum efficiency. Our thoroughly tested material profiles, controlled printing environment, enhanced active bed leveling, and filament flow sensor ensure reliability from first layer to finished part. Get great results every time, no matter how large your print job.
Design freedom with reliable
Achieve complex geometries and intricate designs with the Ultimaker S5’s reliable dualextrusion technology and water-soluble support.Print in a range of engineering and support materials for complete design freedom, with minimal post-processing.
Here to help you succeed
The Ultimaker S5 comes with a one year warranty and lifetime support from trained and certified global network of partners. And if you have a question,
our online resources and community are there for you 24/7.
Ultimaker S5 Specifications
Office-friendly, 3D printer, industrial-class results
Meet the easy-to-use desktop 3D printer with a large build volume that delivers accurate, industrial-grade parts, time and again.
Built to run continuously and maximize uptime, Ultimaker S5 combines dual extrusion, advanced connectivity, and an open filament system — ready to make 3D printing accessible for even more applications, from rapid prototyping to creating on-demand tooling and end-use parts.
Reliability at scale
Every day, hundreds of thousands of engineers, designers, architects, and medical professionals around the world rely on Ultimaker 3D printers for their work. Ultimaker S5 takes this dependability and performance to the next level with a range of new and refined features:
Printer and printing properties
Fused filament fabrication (FFF)
Dual-extrusion print head with an auto-nozzle
lifting system and swappable print cores
XYZ: 330 x 240 x 300 mm
(left or right nozzle, or dual extrusion)
0.25 mm nozzle: 150 - 60 micron
0.4 mm nozzle: 200 - 20 micron
0.8 mm nozzle: 600 - 20 micron
6.9, 6.9, 2.5 micron
Heated glass build plate,
Heated aluminum build plate (available fall 2018)
Build plate temperature
20 - 140 °C
Build plate leveling
Optimized for: PLA, Tough PLA, Nylon, ABS,
CPE, CPE+, PC, TPU 95A, PP, PVA, Breakaway
(also supports third-party materials)
In the box: UltimakerTough PLA Black 750 g, Ultimaker PVA 750 g
(ready for composite materials)
0.25 mm, 0.4 mm, 0.8 mm
180 - 280 °C
Nozzle heat up time
Build plate heat up time
<4 min (from 20 to 60 °C)
Auto-recognition with NFC scanner
Wi-Fi, LAN, USB port
4.7-inch (11.9 cm) color touchscreen
English, Dutch, French, German, Italian,
Japanese, Korean, Portuguese, Russian,
Spanish, Simplified Chinese
Live camera (view from desktop or app)
495 x 457 x 520 mm
495 x 585 x 780 mm
(with bowden tubes and spool holder)
Shipping box dimensions
650 x 600 x 700 mm
Operating ambient temperature
15 - 32 °C, 10 - 90% RH non-condensing
0 - 32 °C
Ultimaker Cura, our free print preparation software
Cura Connect, our free printer management solution
MacOS, Windows and Linux
SolidWorks, Siemens NX
Ultimaker Cura: STL, OBJ, X3D, 3MF, BMP,
GIF, JPG, PNG
Printable formats: G, GCODE, GCODE.gz, UPF
Warranty and service
Lifetime support from Ultimaker’s global network
of certified service partners
